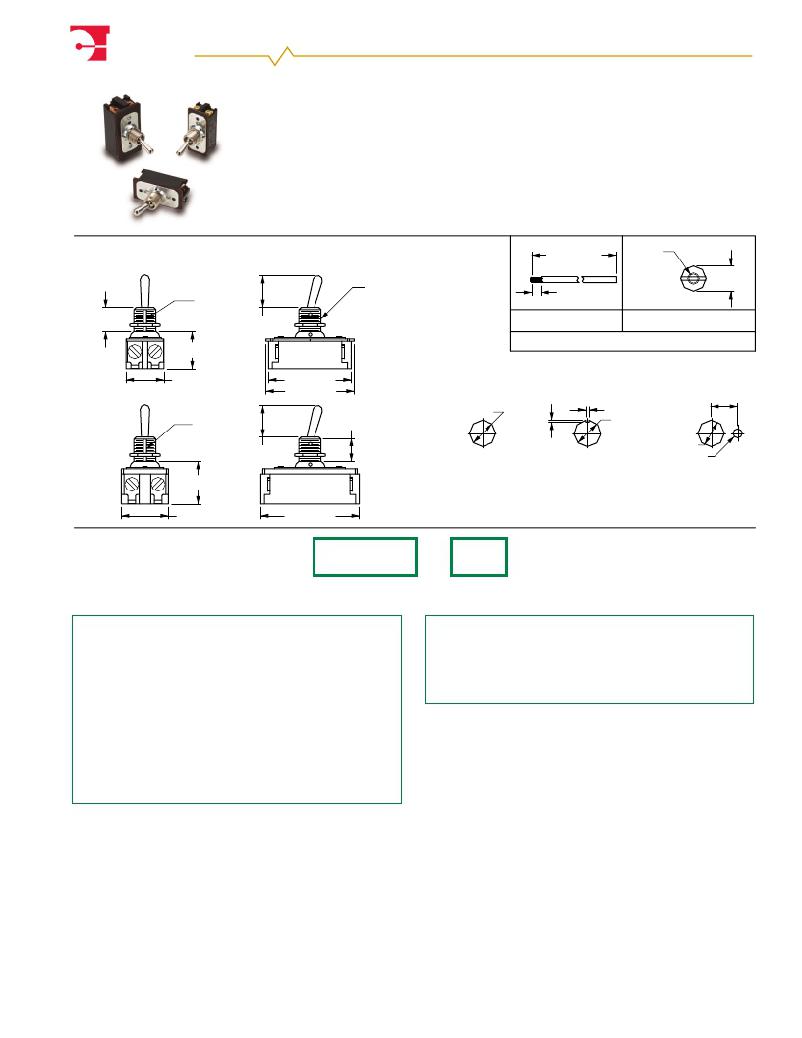

DK/EK-Series Heavy Duty Toggle Switches
DK/EK-Series Heavy Duty Toggle Switches
The switch that can handle your heavy duty requirements.
Single or double pole with wire lead or screw terminations,
and ratings to 20A 125V 10A 250V, the ac/dc DK/EK-Series
is the most heavy duty toggle switch in the Carling line. Its
sturdy metal construction and stiff actuation force will with-
stand the abuses of virtually any stringent application. The
quick make/quick break contact mechanism is ideal for
Dielectric Strength
UL/CSA: 1000V - live to dead
metal parts & opposite polarity
Electrical Life
25,000 cycles
Mechanical Life
100,000 cycles
Operating Temperature
0°F to 150°F (-17.8°C to +65.6°C)
high voltage DC applications. The DK/EK-Series has long
been a staple of the Industrial Motor control and General
Purpose market segments.
#6-32NC-2
6.000[152.40]
THREAD
KEYWAY
.072[1.82]
X
15/32-32UNS-2A
THREAD (TYP)
.500[12.70]
.270[6.86]
.038[.965]
.465[11.81]
.687[17.44]
WIRE LEAD
SCREW
(ASSEMBLED)
.765[19.43]
.836[21.23]
1.750[44.45]
1.764[44.80]
DK
SERIES
TERMINAL TYPE
KEYWAY
.072[1.82]
X
.465[11.81]
.500[12.70] DIA
.062[1.57]
.500[12.70] DIA
.376[9.55]
.038[.965]
.687[17.44]
.038[9.65]
.500[12.70] DIA
.125[3.17] DIA
MOUNTING HOLE
EK
.895[22.73]
SERIES
1.000[25.40]
2.093[53.16]
DK284 - 73
2
1
Actuator Style
Base Part Number
1 BASE PART NUMBER: SERIES/POLES/CIRCUITRY/RATING/TERMINATION
2 ACTUATOR STYLE 1
BALL STYLE TOGGLE
8A 250V, 16A 125V, 1 HP 125-250V
WITH KEYWAY
WITH LOCKING RING
screw wire
unsealed toggle length
bushing length
terminals leads
32
0.500
0.343
Single Pole
BAT STYLE TOGGLE
ON-NONE-OFF
DA284 DA285
unsealed toggle length
bushing length
Double Pole
ON-NONE-OFF
DK284 DK285
73
0.687
0.465
10A 250V, 20A 125V, 1 1/2 HP 125-250V
screw wire
terminals leads
Single Pole
ON-NONE-OFF
Double Pole
ON-NONE-OFF
NOTES
EA204 EA205
EK204 EK205
1
Additional toggle lengths available. Consult factory for details.
www.carlingtech.com
31
